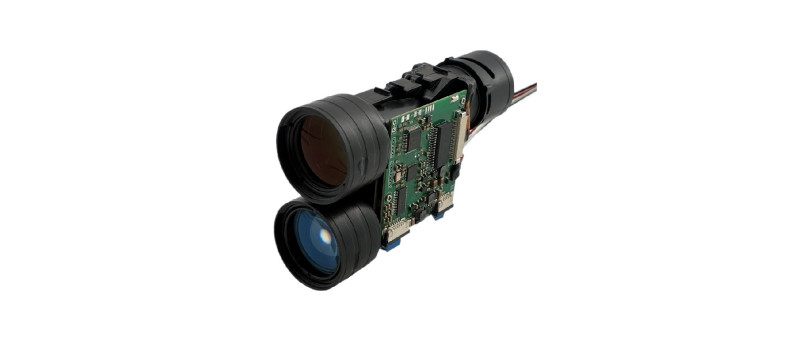

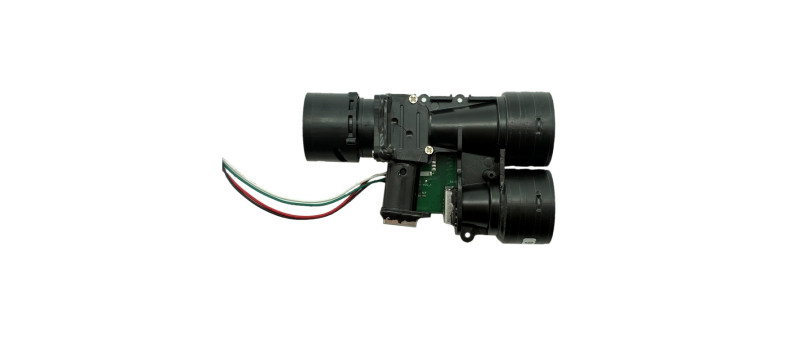

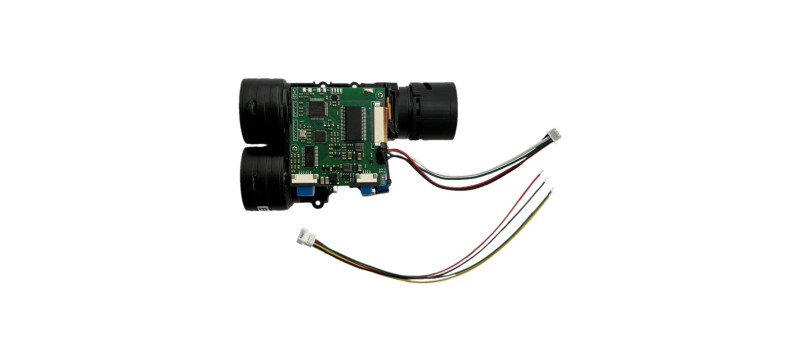

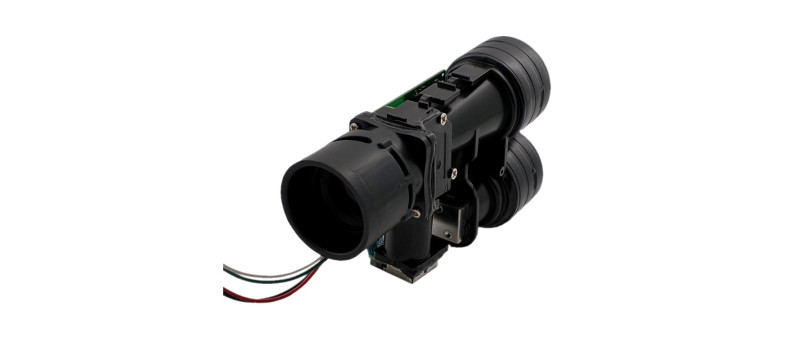

Optical Viewfinder Long-Distance Laser Rangefinder Module - LRFX00M3LSV
LS Series

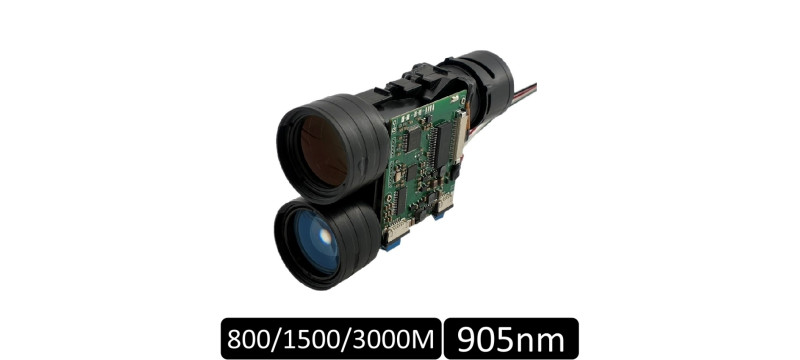

The LRFX00M3LSV is a laser rangefinder module with an integrated optical viewfinder, available in 800m, 1500m, and 3000m versions for different applications. Unlike standard aiming lasers that are difficult to see beyond 200m outdoors, the optical viewfinder enables accurate targeting at much longer distances. The module also includes angle sensing for calculating target height or horizontal distance.
Functions
- Single Measurement
- Continuous Measurement
- Aiming Laser ON/OFF
- Angle Detection
- Baudrate Setting
- Optical Viewfinder
Technical Information
| Model Name | LRF800M3LSV / LRF1500M3LSV / LRF3000M3LSV |
| Max Range | ≥800m / ≥1500m / ≥3000m |
| Min Range | ≥5m |
| Measurement Accuracy | <100m: ±1m ≥100m: ±(1+Dx0.25%)m, D=distance |
| Measurement Frequency | ≥1~3Hz |
| Detection Probability | ≥98% |
| False Alarm Rate | ≤1% |
| Wavelength | 905 nm |
| Beam Divergence | ≥4mrad |
| Laser Safety | Class 1 |
| Communication Interface | 3.3V TTL (UART) |
| Input Voltage | DC 3.3V±0.3V |
| Standby Power Consumption | ≤250mW |
| Operating Power Consumption | ≤500mW |
| Dimensions | 115 x 75 x 35mm |
| Weight | ≤95g |
| Operating Temperature | -20°C~50°C |

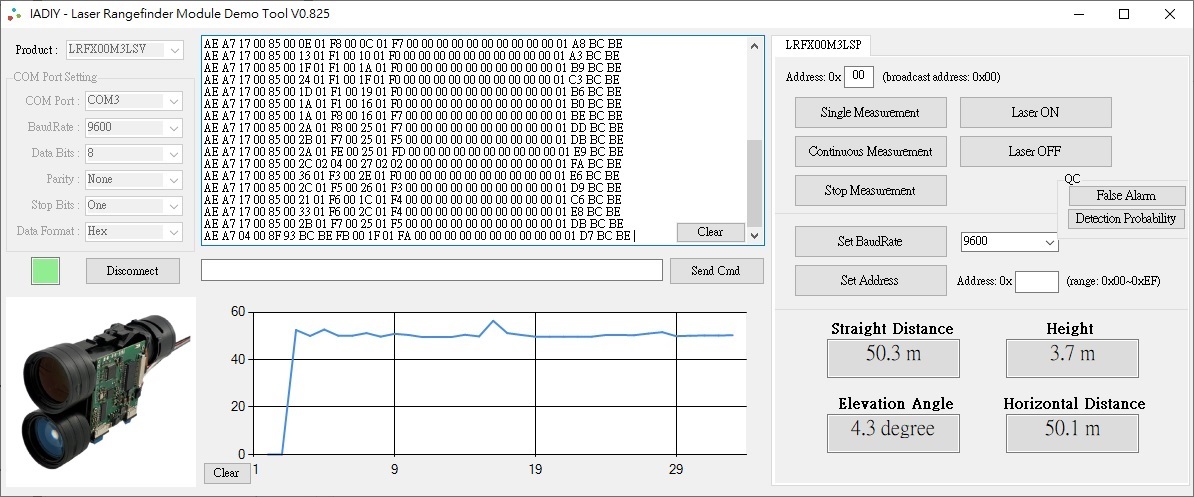

Demo Tool Download
Sample Code
LRFX00M3LSV Sample Code for Python
LRFX00M3LSV Sample Code for Arduino
Note:
For customization or mass production purchases, please contact us.
Optical Viewfinder Long-Distance Laser Rangefinder Module - LRFX00M3LSV
Starting From $270.0
5 or more $256.0
10 or more $225.0
50 or more $198.0
100 or more $178.0
- Deliver Time: Available, 7~21 Days
- Product ID: LRFX00M3LSV
